- With almost universal resistance to corrosion, a long service life is guaranteed and maintenance is kept to a minimum.
- Their transparency permits visual monitoring of the process at all times.
- Being inert, the risk of contamination is negligible.
- Smooth surfaces allow easy cleaning and sterilization and prevent the build-up of solid on the inner walls.
In many unit operations such as reaction, extraction and absorption, the transparency factor of glass column components is a particular advantage. As an example, color changes in reaction processes are easily monitored, droplet separation in extraction processes can be observed unhindered and constant visual monitoring of hydraulic performance in packed columns is possible.

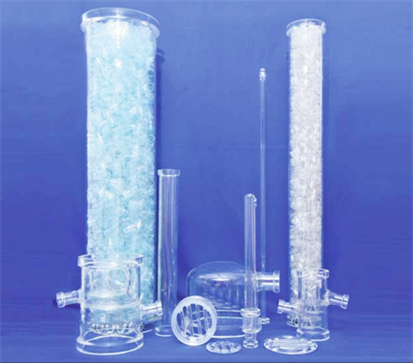

Column components are available from DN 80 to DN 450 with a smaller range of precision bore components available from DN 25 to DN 150 for specific applications where close internal tolerances are essential.
The complete range of column components is described on the following pages. All column components have standard flat buttress end connections. Further details of these are provided in section: Technical Information.
For standard flat buttress end connections from DN25 to DN300, it is possible to achieve a 3° deflection in the joint by using a flexible gasket. Details of these and all other couplings and gasket can be found in section Couplings.
DN refers to the nominal bore. Unless otherwise stated all dimensions are given in mm.
